STU8N80K5 - N-channel Power MOSFET

These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance, and ultra-low gate charge for applications which.

STU8N80K5 Features

* Order codes TAB VDS 800 V RDS(on)max. 0.95 Ω ID 6A PTOT 110 W STP8N80K5 TAB STU8N80K5 3 2 3 1 2 1

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected IPAK TO-220 Applications Figure 1. Internal schematic

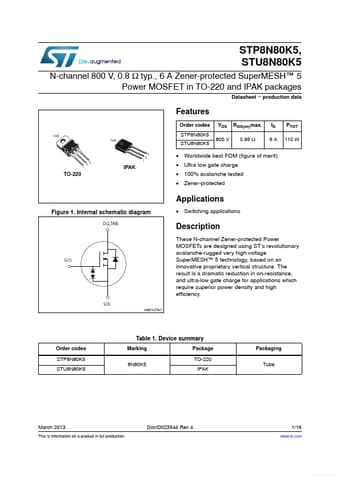

STU8N80K5_STMicroelectronics.pdf
