STU8NM60ND Datasheet - STMicroelectronics

Power MOSFET

STU8NM60ND Features

* Type STD8NM60ND STF8NM60ND STP8NM60ND STU8NM60ND VDSS (@Tjmax) 650 V 650 V 650 V 650 V RDS(on) max < 0.70 Ω < 0.70 Ω < 0.70 Ω < 0.70 Ω ID 3 3 2 1 1 2 7A 7A 7 A(1) 7A IPAK TO-220 1. Limited only by maximum temperature allowed

* 3 1 3 1 2 The worldwide best RDS(on)

STU8NM60ND General Description

The FDmesh™ II series belongs to the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout and associates all advantages of reduced onresistance and fast switching with an intrinsic fastrecovery body diode.Strongly .

STU8NM60ND Datasheet (626.11 KB)

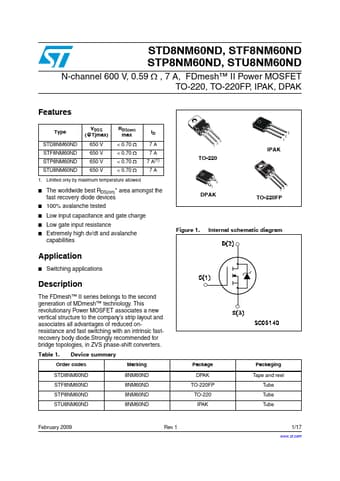

Preview of STU8NM60ND PDF

Datasheet Details

Part number:

STU8NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

626.11 KB

Description:

Power mosfet.
