STU8NB90, N-channel Power MOSFET

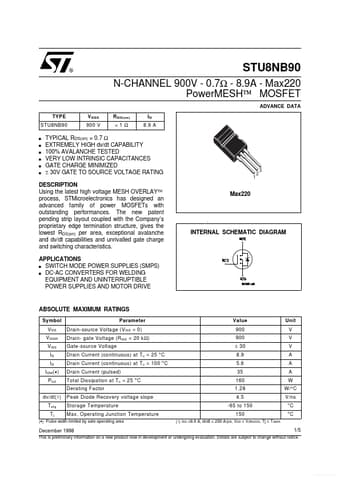

® STU8NB90 N-CHANNEL 900V - 0.7Ω - 8.9A - Max220 PowerMESH™ MOSFET ADVANCE DATA TYPE STU8NB90 s s s s s s V DSS 900 V R DS(on) <1Ω ID 8.9 A TYPI.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

Applications

* SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE s Max220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1 ) Tstg Tj Parameter Drain-source Voltage (V GS =
