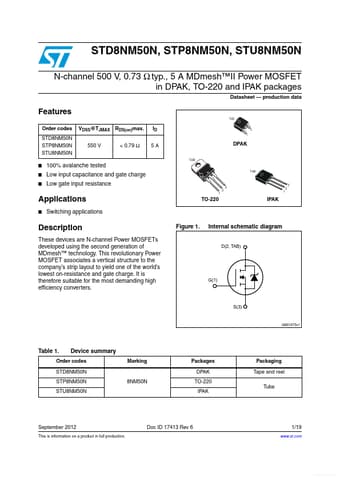

STU8NM50N Datasheet - STMicroelectronics

STU8NM50N - N-channel Power MOSFET

These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most.

STU8NM50N Features

* TAB Order codes STD8NM50N STP8NM50N STU8NM50N

* VDSS@TJMAX RDS(on)max. 550 V < 0.79 Ω ID 1 3 5A TAB DPAK 100% avalanche tested Low input capacitance and gate charge Low gate input resistance 1 2 3 1 TAB 3 2 Applications

* TO-220 IPAK Switching applications Figure 1. I

STU8NM50N_STMicroelectronics.pdf
