STV6440AJT - Audio/video buffer and 6-channel SD/PS/HD video filter

Product Overview

STMicroelectronics

Datasheet Details

Part number	STV6440AJT
Manufacturer	STMicroelectronics
File Size	83.37 KB
Description	Audio/video buffer and 6-channel SD/PS/HD video filter
Datasheet	STV6440AJT Datasheet
Note	This datasheet PDF includes multiple part numbers: STV6440AJT, STV6440. Please refer to the document for exact specifications by model.

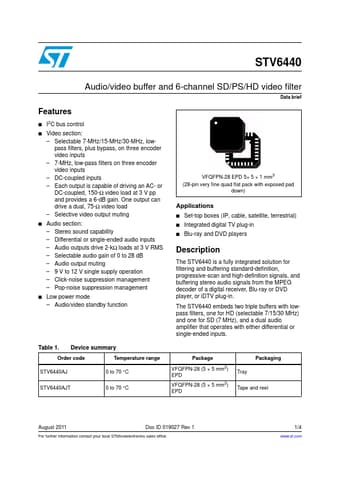

Additional preview pages of the STV6440AJT datasheet.

Product details

Description

The STV6440 is a fully integrated solution for filtering and buffering standard-definition, progressive-scan and high-definition signals, and buffering stereo audio signals from the MPEG decoder of a digital receiver, Blu-ray or DVD player, or iDTV plug-in.

Features

I2C bus control.
Video section:.
Selectable 7-MHz/15-MHz/30-MHz, lowpass filters, plus bypass, on three encoder video inputs.
7-MHz, low-pass filters on three encoder video inputs.
DC-coupled inputs.
Each output is capable of driving an AC- or DC-coupled, 150-Ω video load at 3 V pp and provides a 6-dB gain. One output can drive a dual, 75-Ω video load.
Selective video output muting.
Audio section:.
Stereo sound capability.
