STV6120 - 8PSK/QPSK low-power 3.3-V dual wide-band satellite tuner IC

Product Overview

STMicroelectronics

Datasheet Details

Part number	STV6120
Manufacturer	STMicroelectronics
File Size	128.30 KB
Description	8PSK/QPSK low-power 3.3-V dual wide-band satellite tuner IC
Datasheet	STV6120 Datasheet
Additional preview pages of the STV6120 datasheet.

Product details

Description

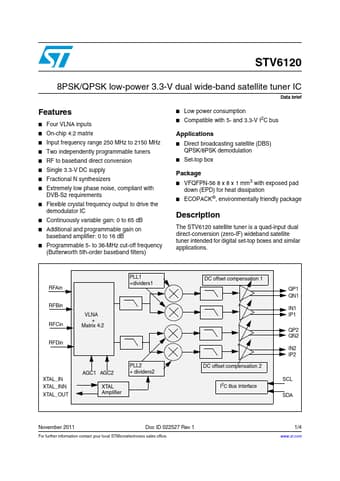

The STV6120 satellite tuner is a quad-input dual direct-conversion (zero-IF) wideband satellite tuner intended for digital set-top boxes and similar applications.

Features

Low power consumption Compatible with 5- and 3.3-V I2C bus Four VLNA inputs On-chip 4:2 matrix Input frequency range 250 MHz to 2150 MHz Two independently programmable tuners RF to baseband direct conversion Single 3.3-V DC supply Fractional N synthesizers Extremely low phase noise, compliant with DVB-S2 requirements Flexible crystal frequency output to drive the demodulator IC Continuously variable gain: 0 to.
