STV6111 Datasheet - STMicroelectronics

8PSK/QPSK low-power 3.3-V satellite tuner IC

STV6111 Features

* Specific operating mode for symbol rates up to 220 Msymb/s Compatible with 5-V and 3.3-V I2C bus RF-to-baseband direct conversion architecture Single 3.3-V DC supply, low consumption Outstanding performance in heavily loaded spectrum condition

STV6111 General Description

The STV6111 satellite tuner is a direct-conversion (zero IF) receiver for digital TV broadcasting. XTAL_OUT Clock management VCO External filter PLL SCL SDA I²C LO dividers VGA1 LNA RF_INP RF_INN Mixers VGA2 QP QN DC offset correction VGA2 IN IP AGC control AGC RF receiver VGA1 November .

STV6111 Datasheet (126.81 KB)

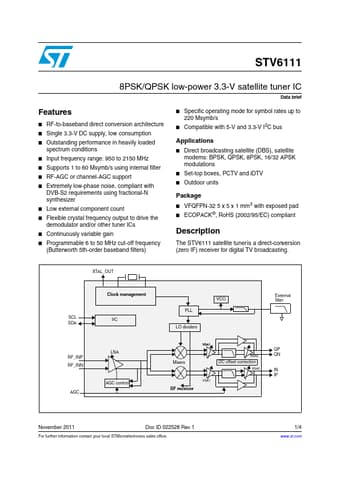

Preview of STV6111 PDF
