Part number:
STV6432
Manufacturer:
File Size:
184.39 KB
Description:
Audio/video output buffers.

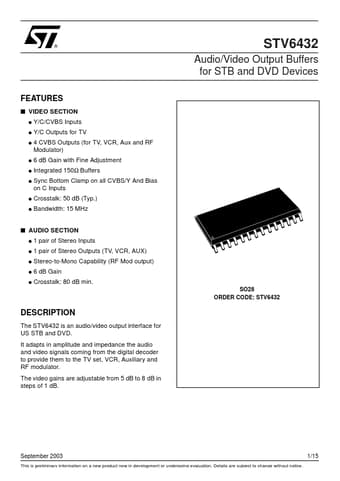

* s VIDEO SECTION q q q Y/C/CVBS Inputs Y/C Outputs for TV 4 CVBS Outputs (for TV, VCR, Aux and RF Modulator) 6 dB Gain with Fine Adjustment Integrated 150Ω Buffers Sync Bottom Clamp on all CVBS/Y And Bias on C Inputs Crosstalk: 50 dB (Typ.) Bandwidth: 15 MHz q q q q q s AUDIO SECTION q q q q q 1
STV6432
184.39 KB
Audio/video output buffers.
