STV6436 Filtered Video Buffers

STV6436 Description

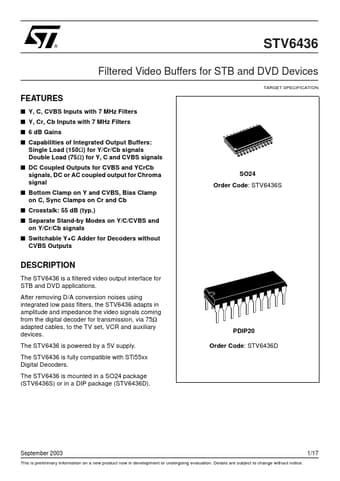

® STV6436 Filtered Video Buffers for STB and DVD Devices TARGET SPECIFICATION .
The STV6436 is a filtered video output interface for STB and DVD applications.

STV6436 Features

* s Y, C, CVBS Inputs with 7 MHz Filters s Y, Cr, Cb Inputs with 7 MHz Filters s 6 dB Gains s Capabilities of Integrated Output Buffers: Single Load (150Ω) for Y/Cr/Cb signals Double Load (75Ω) for Y, C and CVBS signals s DC Coupled Outputs for CVBS and YCrCb signals, DC or AC coupled output for Chrom

STV6436 Applications

* After removing D/A conversion noises using integrated low pass filters, the STV6436 adapts in amplitude and impedance the video signals coming from the digital decoder for transmission, via 75Ω adapted cables, to the TV set, VCR and auxiliary devices. The STV6436 is powered by a 5V supply. The STV6
