Part number:
STV6433
Manufacturer:
File Size:
67.26 KB
Description:
Filtered video buffers.

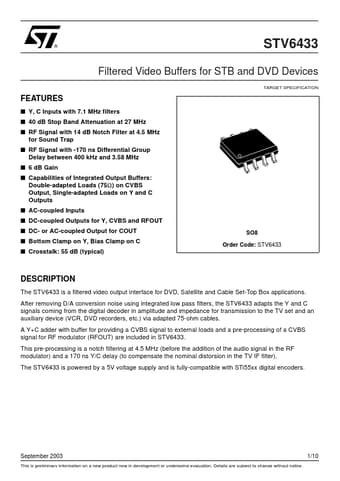

* s Y, C Inputs with 7.1 MHz filters s 40 dB Stop Band Attenuation at 27 MHz s RF Signal with 14 dB Notch Filter at 4.5 MHz for Sound Trap s RF Signal with -170 ns Differential Group Delay between 400 kHz and 3.58 MHz s 6 dB Gain s Capabilities of Integrated Output Buffers: Double-adapted Loads (75Ω)
STV6433
67.26 KB
Filtered video buffers.
📁 Related Datasheet
STV6432 - Audio/Video Output Buffers
(ST Microelectronics)
®
STV6432
Audio/Video Output Buffers for STB and DVD Devices
