STV60NE06-16, N-CHANNEL POWER MOSFET

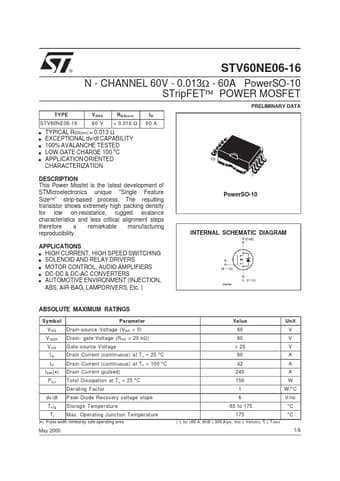

® STV60NE06-16 N - CHANNEL 60V - 0.013Ω - 60A PowerSO-10 STripFET™ POWER MOSFET PRELIMINARY DATA T YPE STV60NE06-16 s s s s s V DSS 60 V R DS(on) .
This Power Mosfet is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) 1 PowerSO-10 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM
