STW23N80K5

N-CHANNEL MOSFET

STW23N80K5 Features

* Order code VDS RDS(on) max. ID PTOT STW23N80K5 800 V 0.28 Ω 16 A 190 W

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Description This ve

STW23N80K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STW23N80K5 Datasheet (561.63 KB)

Preview of STW23N80K5 PDF

Datasheet Details

Part number:

STW23N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

561.63 KB

Description:

N-channel mosfet.

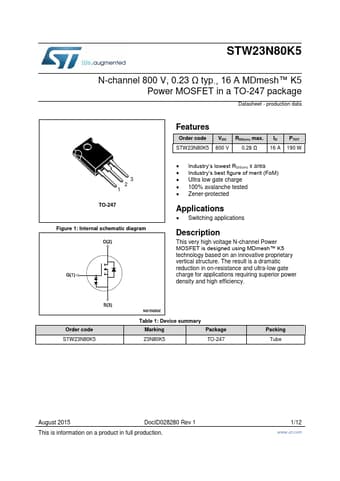

STW23N80K5 N-channel 800 V, 0.23 Ω typ., 16 A MDmesh™ K5 Power MOSFET in a TO-247 package Datasheet - production data 3 2 1 TO-247 Figure 1: Interna.
