STW23N85K5

N-channel Power MOSFET

STW23N85K5 Features

* Order code VDS RDS(on) max. ID PTOT STW23N85K5 850 V 0.275 Ω 19 A 250 W

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applicati

STW23N85K5 General Description

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order cod.

STW23N85K5 Datasheet (303.28 KB)

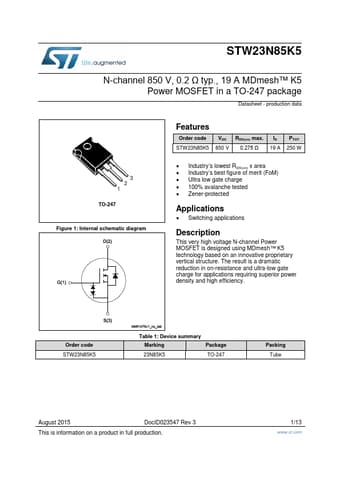

Preview of STW23N85K5 PDF

Datasheet Details

Part number:

STW23N85K5

Manufacturer:

STMicroelectronics ↗

File Size:

303.28 KB

Description:

N-channel power mosfet.
STW23N85K5 N-channel 850 V, 0.2 Ω typ., 19 A MDmesh™ K5 Power MOSFET in a TO-247 package Datasheet - production data 3 2 1 TO-247 Figure 1: Internal.
