STW5094A

18-bit Low Power Asynchronous Stereo Audio DAC

STMicroelectronics

STW5094A Features

* Complete stereo audio digital to analog converters and filters

* 18-bit, 8 kHz to 48 kHz DAC with sample-rate conversion

* Linear phase analog&digital filters www.DataSheet4U.com

* 16 Ω load stereo headphones drivers, 8 Ω load mono loudspeaker driver for group listenin

STW5094A General Description

STw5094A is a low power asynchronous stereo audio DAC device with headphones amplifiers for high quality MP3 and FM radio listening. The STw5094A includes also an high performance low power combined PCM Codec⁄ filter tailored to implement the audio front-end functions required by low voltage low pow.

STW5094A Datasheet (619.27 KB)

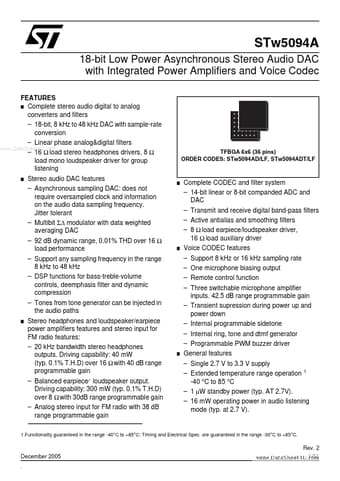

STW5094A Datasheet Preview — Preview of STW5094A PDF

Datasheet Details

Part number:

STW5094A

Manufacturer:

STMicroelectronics ↗

File Size:

619.27 KB

Description:

18-bit low power asynchronous stereo audio dac.
