STW5200

103 dB SNR audio DAC

STMicroelectronics

STW5200 Features

* DAC www.DataSheet4U.com

* 24-bit audio DAC

* 103 dB dynamic range

* Asynchronous DAC path with 8 to 48kHz sampling rate Supply

* Direct connection to the battery thanks to integrated power management Inputs

* I2S digital input Analog output drivers

STW5200 General Description

The STw5200 is a 24-bit high performance DAC for mobile handset application with 103 dB dynamic range for the whole audio path. The device can be driven either by the system clock or by the 32 kHz RTC clock. STw5200 is very easy to integrate and thanks to its embedded power management, it can be dir.

STW5200 Datasheet (124.17 KB)

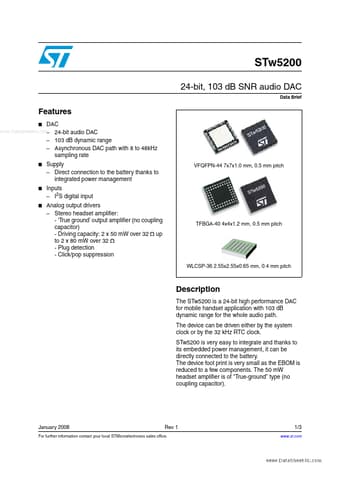

STW5200 Datasheet Preview — Preview of STW5200 PDF

Datasheet Details

Part number:

STW5200

Manufacturer:

STMicroelectronics ↗

File Size:

124.17 KB

Description:

103 db snr audio dac.
