STW5095

Low Power Asynchronous Stereo Audio Codec with Integrated Power Amplifiers

STW5095 Features

* 20 bit audio resolution, 8kHz to 96kHz independent rate ADC and DAC Asynchronous sampling ADC and DAC: they do not require oversampled clock and information on the audio data sampling frequency (fs). Jitter tolerant fs Wide master clock range: from 4MHz to 32MHz I2C/SPI compatible contr

STW5095 General Description

STw5095 is a low power asynchronous stereo audio CODEC device with headphones amplifiers for high quality audio listening and recording. The STw5095 control registers are accessed through a selectable I2C-bus compatible or SPI compatible interface. The supply voltage can be the same for the whole d.

STW5095 Datasheet (1.18 MB)

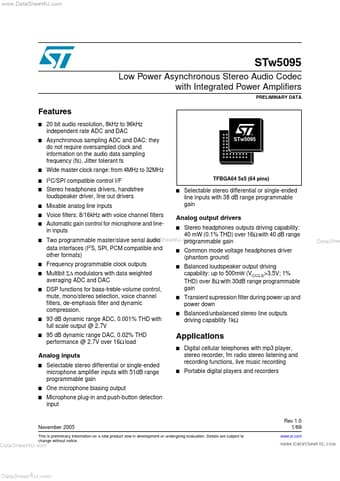

Preview of STW5095 PDF

Datasheet Details

Part number:

STW5095

Manufacturer:

STMicroelectronics ↗

File Size:

1.18 MB

Description:

Low power asynchronous stereo audio codec with integrated power amplifiers.
