STW50N10 Datasheet - ST Microelectronics

STW50N10 N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

www.DataSheet4U.com STW50N10 N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE ST W50N10 s s s s s s s V DSS 100 V R DS(on) < 0.035 Ω ID 50 A TYPICAL RDS(on) = 0.027 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC HIGH CURRENT CAPABILITY 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION TO-247 3 2 1 APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s POWER MOTOR CONTROL s DC-DC & DC-AC CONVERTERS s SYNCRONOUS RECTIFICATION INTER.

STW50N10_STMicroelectronics.pdf

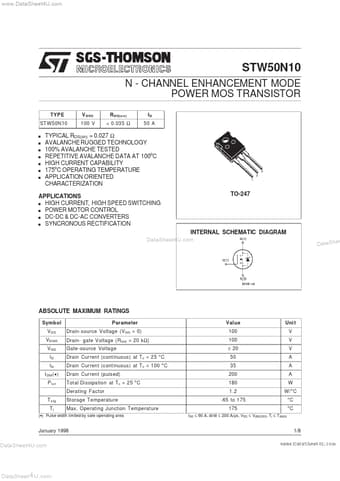

Preview of STW50N10 PDF
STW50N10 Datasheet Preview Page 2 STW50N10 Datasheet Preview Page 3

Datasheet Details

Part number:

STW50N10

Manufacturer:

STMicroelectronics ↗

File Size:

282.22 KB

Description:

N - channel enhancement mode power mos transistor.
