STW54NM65ND N-Channel MOSFET

STW54NM65ND Description

isc N-Channel MOSFET Transistor STW54NM65ND *.

STW54NM65ND Features

* With TO-247 packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STW54NM65ND Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 650 V VGSS Gate-Source Voltage ±25 V ID Drain Current-Continuous@TC=25℃ 49 A IDM Drain Current-Single Pulsed 196 A PD Total Dissipation 35

📥 Download Datasheet

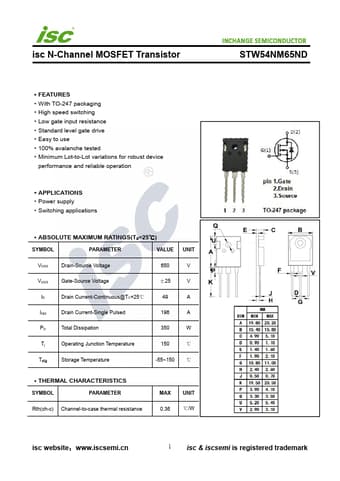

Preview of STW54NM65ND PDF
datasheet Preview Page 2

Datasheet Details

Part number
STW54NM65ND
Manufacturer
INCHANGE
File Size
368.72 KB
Datasheet
STW54NM65ND-INCHANGE.pdf
Description
N-Channel MOSFET
