STW18NM60N Datasheet, Mosfet, INCHANGE

STW18NM60N Features

  • Mosfet
  • Drain Current ID= 13A@ TC=25℃
  • Drain Source Voltage- : VDSS= 600V(Min)
  • Fast Switching Speed
  • 100% avalanche tested
  • Minimum Lot-to-Lot variatio

PDF File Details

Part number:

STW18NM60N

Manufacturer:

INCHANGE

File Size:

371.36kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

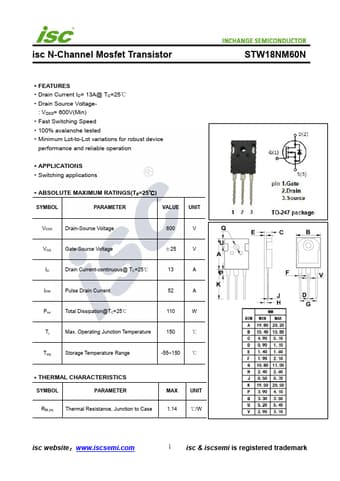

Datasheet Preview: STW18NM60N 📥 Download PDF (371.36kb)
Page 2 of STW18NM60N

STW18NM60N Application

  • Applications
  • Switching applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage
