STW18NB40FI, STW18NB40, N-CHANNEL MOSFET

N-CHANNEL 400V - 0.19 Ω - 18.4 A TO-247/ISOWATT218 PowerMesh™ MOSFET TYPE STW18NB40 STH18NB40FI s s s s s STW18NB40 STH18NB40FI PRELIMINARY DATA VDS.
Using the latest high voltage MESH OVERLAY ™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performance.

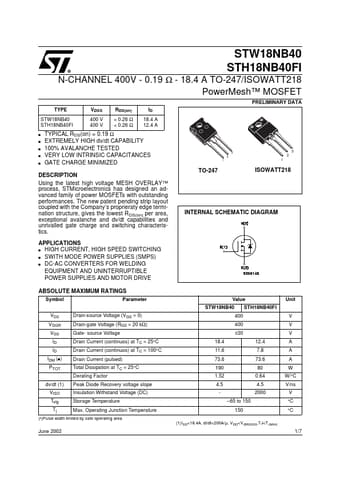

datasheet Preview Page 1 from Datasheet4u.com

STW18NB40_STMicroelectronics.pdf

STW18NB40FI Datasheet Preview — This datasheet PDF includes multiple part numbers: STW18NB40FI, STW18NB40. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STW18NB40FI, STW18NB40

Manufacturer:

STMicroelectronics ↗

File Size:

142.26 KB

Description:

N-CHANNEL MOSFET

Note:

This datasheet PDF includes multiple part numbers: STW18NB40FI, STW18NB40.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (l) PTOT dv/dt (1) VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-ga
