STW18N60M2 Datasheet, Mosfet, STMicroelectronics

STW18N60M2 Features

  • Mosfet Order codes VDS @ TJmax RDS(on) max. STB18N60M2 STI18N60M2 STP18N60M2 650 V 0.280 Ω STW18N60M2
  • Extremely low gate charge
  • Excellent output capacitance (COSS)

PDF File Details

Part number:

STW18N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

820.35kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology. Thanks to their strip layout and improved vertic

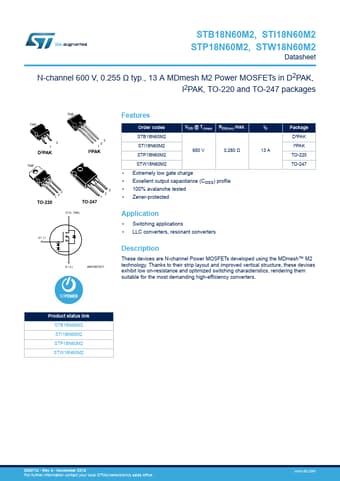

Datasheet Preview: STW18N60M2 📥 Download PDF (820.35kb)
Page 2 of STW18N60M2 Page 3 of STW18N60M2

STW18N60M2 Application

  • Applications
  • LLC converters, resonant converters Description These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 tec
