STW10N105K5 Datasheet, Mosfet, STMicroelectronics

STW10N105K5 Features

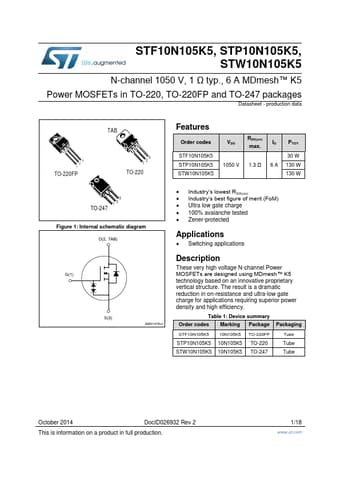

• Mosfet Order codes STF10N105K5 STP10N105K5 STW10N105K5 VDS 1050 V RDS(on) max. ID PTOT 1.3 Ω 30 W 6 A 130 W 130 W 3 12 TO-247 Figure 1: Internal schematic diagram D(2, TAB) G(1) S(3)

PDF File Details

Part number:

STW10N105K5

Manufacturer:

STMicroelectronics ↗

File Size:

533.69kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical

STW10N105K5 Application

• Applications
• Switching applications Description These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology
