STW11NK100Z Datasheet, Mosfet, ST Microelectronics

STW11NK100Z Features

  • Mosfet Type VDSS (@Tjmax) RDS(on) ID Pw STW11NK100Z 1000 V < 1.38 Ω 8.3 A 230W
  • Extremely high dv/dt capability
  • 100% avalanche tested
  • Gate charge minimized

PDF File Details

Part number:

STW11NK100Z

Manufacturer:

STMicroelectronics ↗

File Size:

287.24kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

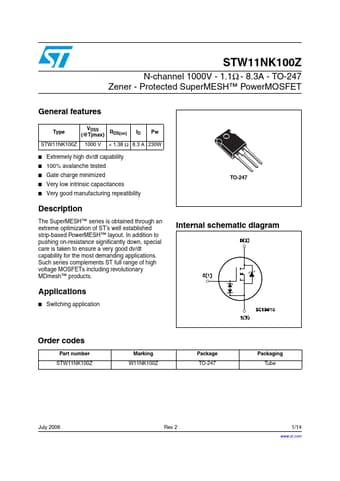

Datasheet Preview: STW11NK100Z 📥 Download PDF (287.24kb)
Page 2 of STW11NK100Z Page 3 of STW11NK100Z

STW11NK100Z Application

  • Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
  • Switch
