STW12NM60N - N-channel Power MOSFET

Product Overview

STMicroelectronics

Datasheet Details

Part number	STW12NM60N
Manufacturer	STMicroelectronics
File Size	633.15 KB
Description	N-channel Power MOSFET
Datasheet	STW12NM60N Datasheet
Additional preview pages of the STW12NM60N datasheet.

Product details

Description

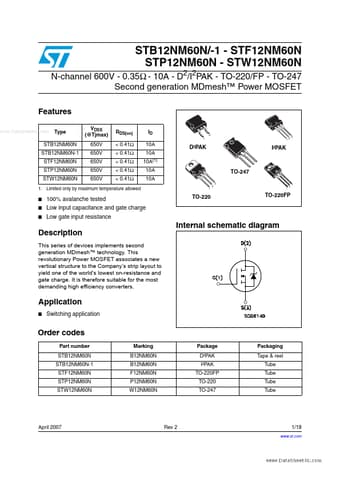

This series of devices implements second generation MDmesh™ technology. Switching application Order codes Part number STB12NM60N STB12NM60N-1 STF12NM60N STP12NM60N STW12NM60N Marking B12NM60N B12NM60N F12NM60N P12NM60N W12NM60N Package D²P

Features

www. DataSheet4U. com Type VDSS (@Tjmax) 650V 650V 650V 650V 650V RDS(on) < 0.41Ω < 0.41Ω < 0.41Ω < 0.41Ω < 0.41Ω ID 1 3 3 12 STB12NM60N STB12NM60N-1 STF12NM60N STP12NM60N STW12NM60N 10A 10A 10A(1) 10A 10A D²PAK I²PAK TO-247 3 1 2 3 1 2 1. Limited only by maximum temperature allowed.
100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-220 TO-220FP Internal schematic diagram.
