STW12NA50 - N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

STW12NA50 Description

www.DataSheet4U.com STW12NA50 N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STW12NA50 s s s s s s s V DSS 500 V R DS( on) < 0.6 Ω ID.
This series of POWER MOSFETS represents the most advanced high voltage technology.

STW12NA50 Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VD S V DG R V GS ID ID ID M(
* ) P tot T stg Tj Parameter Drain-sou

📥 Download Datasheet

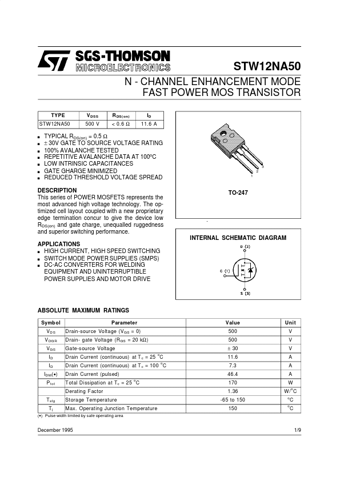

Preview of STW12NA50 PDF
