STW12NK95Z Datasheet, Mosfet, STMicroelectronics

STW12NK95Z Features

  • Mosfet www.DataSheet4U.com Type VDSS RDS(on) (@Tjmax) 950 V < 0.90Ω ID 10 A PW 230W STW12NK95Z
  • Gate charge minimized 100% avalanche tested Extremely high dv/

PDF File Details

Part number:

STW12NK95Z

Manufacturer:

STMicroelectronics ↗

File Size:

349.58kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition

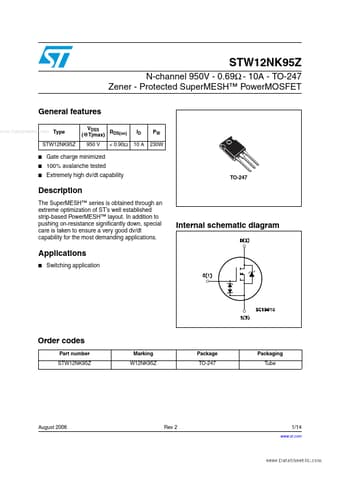

Datasheet Preview: STW12NK95Z 📥 Download PDF (349.58kb)
Page 2 of STW12NK95Z Page 3 of STW12NK95Z

STW12NK95Z Application

  • Applications Internal schematic diagram Applications
  • Switching application Order codes Part number STW12NK95Z Marking W12NK95Z Packag
