STW12NK80Z Datasheet, Mosfet, ST Microelectronics

STW12NK80Z Features

  • Mosfet Type VDSS (@Tjmax) RDS(on) ID PW STB12NK80Z STF12NK80Z STP12NK80Z STW12NK80Z 800V 800V 800V 800V <0.75Ω 10.5 A 190W <0.75Ω 10.5 A 40W <0.75Ω 10.5 A 190W <0.75Ω 10.5 A 190W

PDF File Details

Part number:

STW12NK80Z

Manufacturer:

STMicroelectronics ↗

File Size:

466.86kb

Download:

📄 Datasheet

Description:

N-channel mosfet. These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved throug

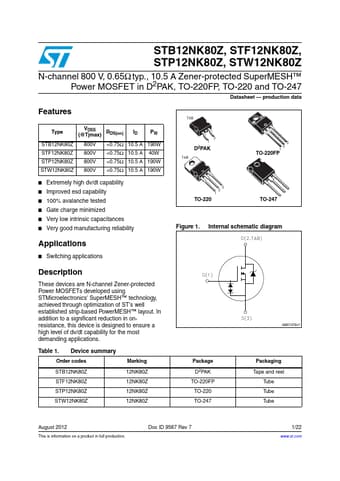

Datasheet Preview: STW12NK80Z 📥 Download PDF (466.86kb)
Page 2 of STW12NK80Z Page 3 of STW12NK80Z

STW12NK80Z Application

  • Applications
  • Switching applications TAB 3 1 D2PAK TAB 3 2 1 TO-220FP 3 2 1 TO-220 TO-247 Figure 1. Internal schematic diagram D(2,TAB
