STW10N95K5

N-channel Power MOSFET

STMicroelectronics

STW10N95K5 Features

* 3 1 D2PAK TAB 3 2 1 TO-220FP 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram '7$%

* 6 AM01476v1 Order codes VDS RDS(on) max ID PTOT STB10N95K5 STF10N95K5 950 V STP10N95K5 STW10N95K5 0.8 Ω 130 W 30 W 8A 130 W

* Worldwide best FOM (figure of merit)

STW10N95K5 General Description

These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance, and ultra-low gate charge for applications whic.

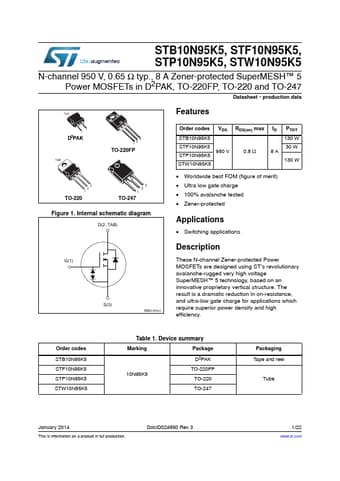

STW10N95K5 Datasheet (1.26 MB)

STW10N95K5 Datasheet Preview — Preview of STW10N95K5 PDF

Datasheet Details

Part number:

STW10N95K5

Manufacturer:

STMicroelectronics ↗

File Size:

1.26 MB

Description:

N-channel power mosfet.
STB10N95K5, STF10N95K5, STP10N95K5, STW10N95K5 N-channel 950 V, 0.65 Ω typ., 8 A Zener-protected SuperMESH™ 5 2 Power MOSFETs in D PAK, TO-220FP, TO-2.
