STW11NB80 N-CHANNEL PowerMESH MOSFET

ST Microelectronics

Description

www.DataSheet4U.com ® STW11NB80 N-CHANNEL 800V - 0.65Ω - 11A - T0-247 PowerMESH™ MOSFET TYPE STW 11NB80 s s s s s s V DSS 800 V R DS(on) < 0.8 Ω .
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

📥 Download Datasheet

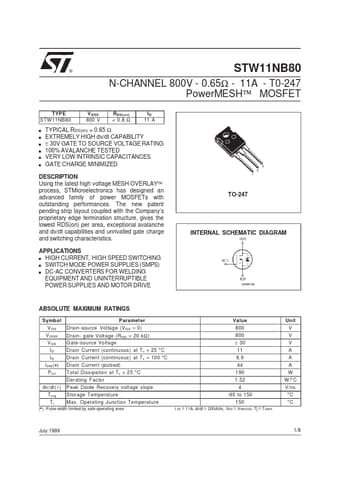

STW11NB80 Datasheet Preview — Preview of STW11NB80 PDF

Datasheet Specifications

Part number: STW11NB80
Manufacturer: STMicroelectronics ↗
File Size: 109.96 KB
Datasheet: STW11NB80_STMicroelectronics.pdf
Description: N-CHANNEL PowerMESH MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-247 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1 ) Ts tg Tj
