STW18NM80

N-channel Power MOSFET

STW18NM80 Features

* Order codes STB18NM80 STF18NM80 STP18NM80 STW18NM80 VDSS 800 V 800 V 800 V 800 V RDS(on) max < 0.295 Ω < 0.295 Ω < 0.295 Ω < 0.295 Ω ID 3 3 1 2 17 A 17 A (1) 17 A 17 A 1 D²PAK TO-220FP 1. Limited only by maximum temperature allowed 3

* 100% avalanche tested Low input capacitan

STW18NM80 General Description

These N-channel Power MOSFETs are developed using STMicroelectronics’ revolutionary MDmesh™ technology, which associates the multiple drain process with the company's PowerMESH™ horizontal layout. These devices offer extremely low on-resistance, high dv/dt and excellent avalanche characteristics. Ut.

STW18NM80 Datasheet (534.80 KB)

Preview of STW18NM80 PDF

Datasheet Details

Part number:

STW18NM80

Manufacturer:

STMicroelectronics ↗

File Size:

534.80 KB

Description:

N-channel power mosfet.

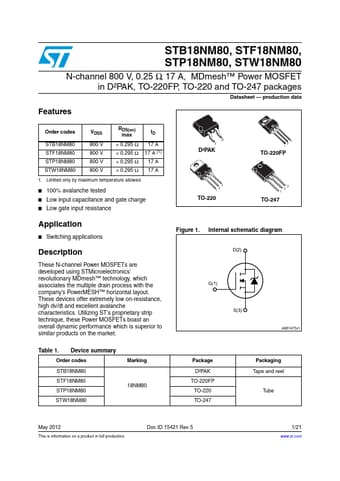

STB18NM80, STF18NM80, STP18NM80, STW18NM80 N-channel 800 V, 0.25 Ω , 17 A, MDmesh™ Power MOSFET in D²PAK, TO-220FP, TO-220 and TO-247 packages Datashe.
