STW15NM60ND - N-Channel MOSFET

INCHANGE

STW15NM60ND Datasheet Preview — Preview of STW15NM60ND PDF

Datasheet Details

Part number	STW15NM60ND
Manufacturer	INCHANGE
File Size	349.28 KB
Description	N-Channel MOSFET
Datasheet	STW15NM60ND-INCHANGE.pdf

STW15NM60ND Product details

Description

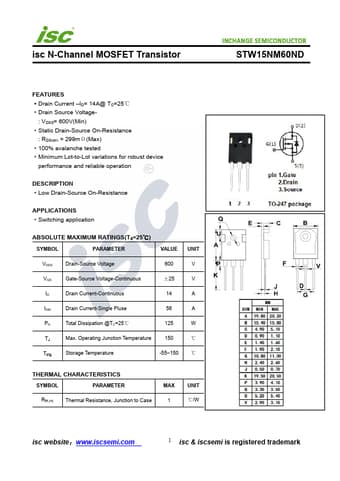

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 14 A IDM Drain Current-Single Pluse 56 A PD Total Dissipation @TC=25℃ 125 W TJ Max.Operating Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,

Features

Drain Current.
ID= 14A@ TC=25℃.
Drain Source Voltage- : VDSS= 600V(Min).
Static Drain-Source On-Resistance : RDS(on) = 299mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
