STW15N95K5 - N-channel Power MOSFETs

STMicroelectronics

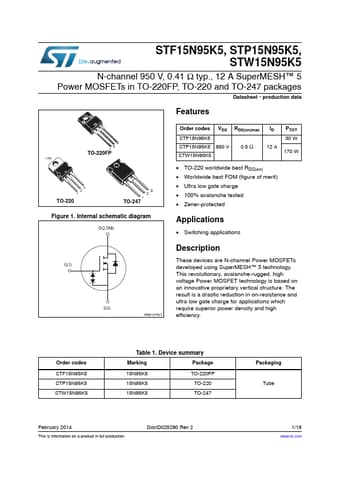

STW15N95K5 Datasheet Preview — Preview of STW15N95K5 PDF

Datasheet Details

Part number	STW15N95K5
Manufacturer	STMicroelectronics ↗
File Size	667.99 KB
Description	N-channel Power MOSFETs
Datasheet	STW15N95K5-STMicroelectronics.pdf

STW15N95K5 Product details

Description

G(1) S(3) AM01476v1 These devices are N-channel Power MOSFETs developed using SuperMESH™ 5 technology.This revolutionary, avalanche-rugged, high voltage Power MOSFET technology is based on an innovative proprietary vertical structure.The result is a drastic reduction in on-resistance and ultra low gate charge for applications which require superior power density and high efficiency.Table 1. Device summary Order codes STF15N95K5 STP15N95K5 STW15N95K5 Marking 15N95K5 15N95K5 15N95K5 Package

Features

Order codes STF15N95K5 3 2 1 VDS RDS(on)max 0.5 Ω ID PTOT 30 W STP15N95K5 STW15N95K5 950 V 12 A 170 W TO-220FP TAB.
TO-220 worldwide best RDS(on).
Worldwide best FOM (figure of merit) 3 1 2.
Ultra low gate charge 3 2 1 TO-220.
100% avalanche tested.
Zener-protected TO-247 Figure 1. Internal schematic diagram D(2,TAB).
