STW150NF55 - N-CHANNEL POWER MOSFET

ST Microelectronics

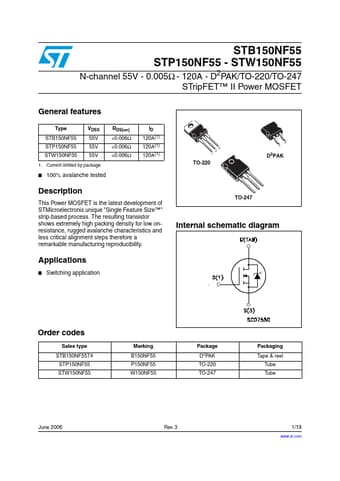

STW150NF55 Datasheet Preview — Preview of STW150NF55 PDF

Datasheet Details

Part number	STW150NF55
Manufacturer	STMicroelectronics ↗
File Size	541.36 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STW150NF55_STMicroelectronics.pdf

STW150NF55 Product details

Description

This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. Switching application 3 2 1 TO-220 3 1 D2PAK TO-247 Internal schematic diagram Order codes Sales type STB150NF55T4 STP150NF55 STW150NF55 Marking B150NF55

Features

Type STB150NF55 STP150NF55 STW150NF55 VDSS 55V 55V 55V RDS(on).
