STW15N80K5 Datasheet - STMicroelectronics

STW15N80K5-STMicroelectronics.pdf

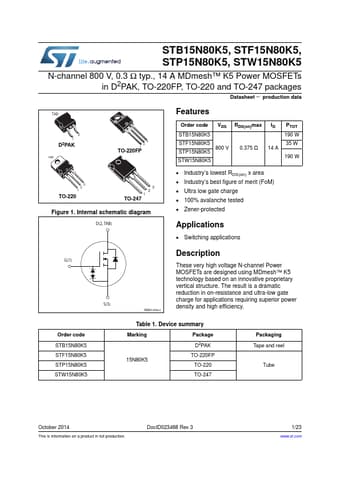

Preview of STW15N80K5 PDF
STW15N80K5 Datasheet Preview Page 2 STW15N80K5 Datasheet Preview Page 3

Datasheet Details

Part number:

STW15N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

1.65 MB

Description:

N-channel power mosfet.

STW15N80K5, N-channel Power MOSFET

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.

Order

STW15N80K5 Features

* Order code VDS STB15N80K5 STF15N80K5 800 V STP15N80K5 STW15N80K5 RDS(on)max 0.375 Ω ID 14 A PTOT 190 W 35 W 190 W

* Industry’s lowest RDS(on) x area

* Industry’s best figure of merit (FoM)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected
