STW15NM60N - N-channel Power MOSFET

STMicroelectronics

STW15NM60N Datasheet Preview — Preview of STW15NM60N PDF

Datasheet Details

Part number	STW15NM60N
Manufacturer	STMicroelectronics ↗
File Size	647.75 KB
Description	N-channel Power MOSFET
Datasheet	STW15NM60N_STMicroelectronics.pdf

STW15NM60N Product details

Description

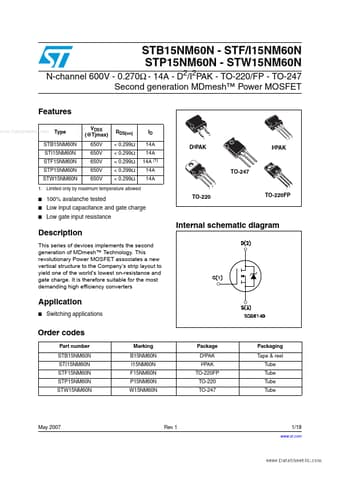

This series of devices implements the second generation of MDmesh™ Technology. Switching applications Order codes Part number STB15NM60N STI15NM60N STF15NM60N STP15NM60N STW15NM60N Marking B15NM60N I15NM60N F15NM60N P15NM60N W15NM60N Packag

Features

www. DataSheet4U. com Type VDSS (@Tjmax) 650V 650V 650V 650V 650V RDS(on) < 0.299Ω < 0.299Ω < 0.299Ω < 0.299Ω < 0.299Ω ID 1 3 3 12 STB15NM60N STI15NM60N STF15NM60N STP15NM60N STW15NM60N 14A 14A 14A (1) 14A 14A D²PAK I²PAK TO-247 3 1 2 3 1 2 1. Limited only by maximum temperature allowed.
100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-220 TO-220FP Internal schematic diagram.
