STW15NK90Z - N-CHANNEL Power MOSFET

ST Microelectronics

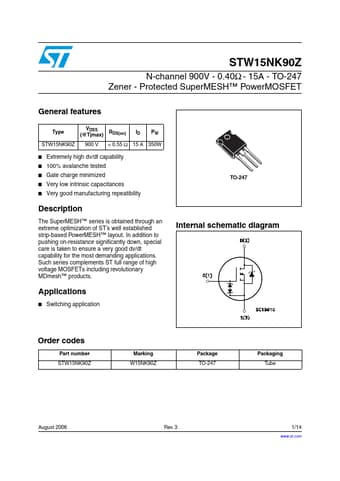

STW15NK90Z Datasheet Preview — Preview of STW15NK90Z PDF

Datasheet Details

Part number	STW15NK90Z
Manufacturer	STMicroelectronics ↗
File Size	313.92 KB
Description	N-CHANNEL Power MOSFET
Datasheet	STW15NK90Z_STMicroelectronics.pdf

STW15NK90Z Product details

Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. Switching application TO-247 Internal schematic diagram Order codes Part number STW15NK90Z Marki

Features

Type VDSS (@Tjmax) RDS(on) ID PW STW15NK90Z 900 V < 0.55 Ω 15 A 350W.
Extremely high dv/dt capability.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitances.
Very good manufacturing repeatibility.
