STW54NK30Z N-CHANNEL MOSFET

STW54NK30Z Description

STW54NK30Z N-CHANNEL 300V - 0.052Ω - 54A TO-247 Zener-Protected SuperMESH™ MOSFET Table 1: General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STW54NK30Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. TO-247 3 2 1 Figure 2: Internal Schematic Diagram APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING DC CHOPPERs s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC Table 2: Order Codes SALE

📥 Download Datasheet

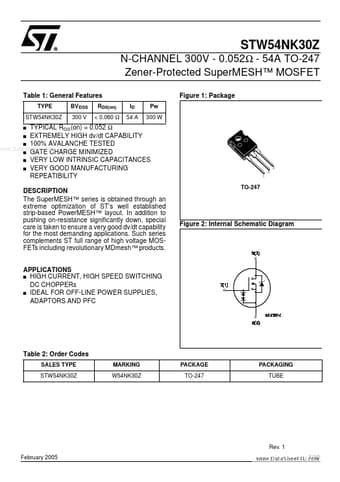

Preview of STW54NK30Z PDF
datasheet Preview Page 2 datasheet Preview Page 3
