STW56N65M2

N-channel Power MOSFET

STW56N65M2 Features

* Order code STW56N65M2 VDS 650 V RDS(on) max ID 0.062 Ω 49 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-protected Applications

* Switching applications Figure 1. Internal schematic diagram '

STW56N65M2 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. 6  .

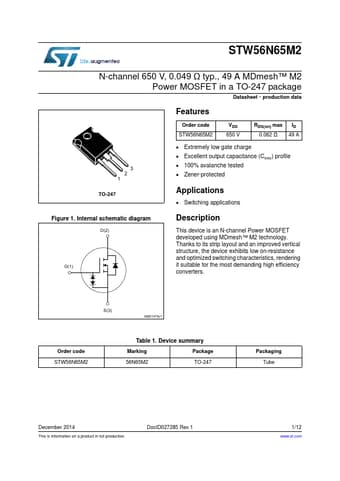

STW56N65M2 Datasheet (704.88 KB)
