STW56N65M2-4 Datasheet - STMicroelectronics

N-channel Power MOSFET

STW56N65M2-4 Features

* 72    Figure 1. Internal schematic diagram 'UDLQ

* DWH  Order code STW56N65M2-4 VDS 650 V RDS(on) max ID 0.062 Ω 49 A

* Excellent switching performance thanks to the extra driving source pin

* Extremely low gate charge

* Excellent output capacitance (

STW56N65M2-4 General Description

This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. 'ULY.

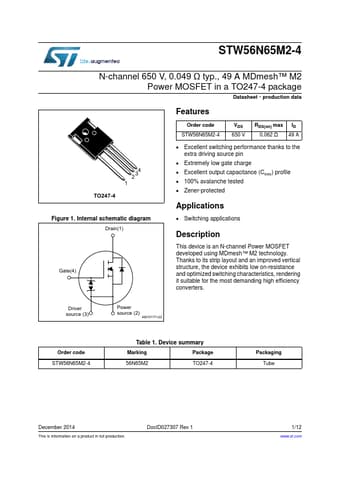

STW56N65M2-4 Datasheet (679.28 KB)

Preview of STW56N65M2-4 PDF

Datasheet Details

Part number:

STW56N65M2-4

Manufacturer:

STMicroelectronics ↗

File Size:

679.28 KB

Description:

N-channel power mosfet.
