STW8N120K5 Datasheet, Mosfet, STMicroelectronics

STW8N120K5 Features

  • Mosfet Order code VDS RDS(on) max. STW8N120K5 1200 V 2.00 Ω
  • Industry’s lowest RDS(on) x area
  • Industry’s best FoM (figure of merit)
  • Ultra-low gate charge

PDF File Details

Part number:

STW8N120K5

Manufacturer:

STMicroelectronics ↗

File Size:

256.66kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical str

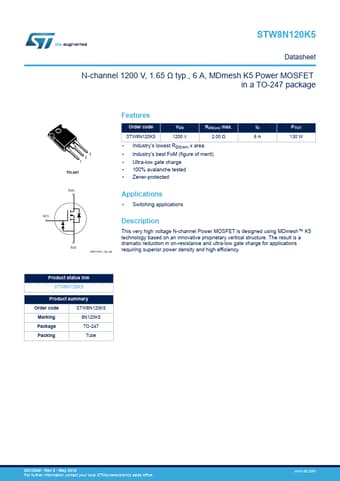

Datasheet Preview: STW8N120K5 📥 Download PDF (256.66kb)
Page 2 of STW8N120K5 Page 3 of STW8N120K5

STW8N120K5 Application

  • Applications
  • Switching applications G(1) Description This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology
