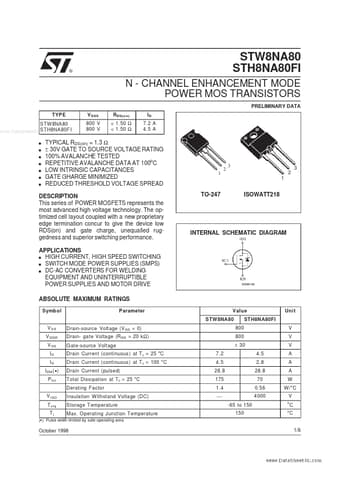

STW8NA80 Datasheet, Transistors, STMicroelectronics

PDF File Details

Part number:

STW8NA80

Manufacturer:

STMicroelectronics ↗

File Size:

77.36kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mos transistors. This series of POWER MOSFETS represents the most advanced high voltage technology. The optimized cell layout coupled with a new propr

STW8NA80 Application

• Applications s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE P
