STWA70N65DM6

N-channel Power MOSFET

STMicroelectronics

STWA70N65DM6 Features

* Order code VDS RDS(on) max. STW70N65DM6 STWA70N65DM6 650 V 40 mΩ

* Fast-recovery body diode

* Lower RDS(on) per area vs previous generation

* Low gate charge, input capacitance and resistance

* 100% avalanche tested

* Extremely high dv/dt ruggedness

STWA70N65DM6 General Description

These high-voltage N-channel Power MOSFETs are part of the MDmesh DM6 fastrecovery diode series. Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Qrr), recovery time (trr) and excellent improvement in RDS(on) per area with one of the most effective switching .

STWA70N65DM6 Datasheet (523.48 KB)

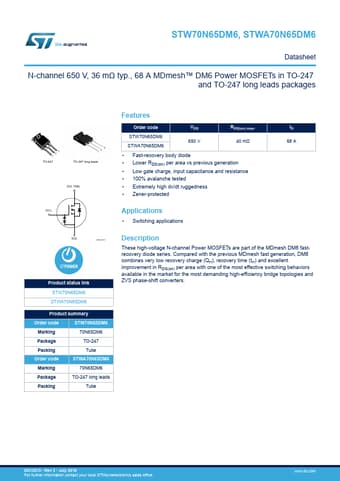

STWA70N65DM6 Datasheet Preview — Preview of STWA70N65DM6 PDF

Datasheet Details

Part number:

STWA70N65DM6

Manufacturer:

STMicroelectronics ↗

File Size:

523.48 KB

Description:

N-channel power mosfet.
STW70N65DM6, STWA70N65DM6 Datasheet N-channel 650 V, 36 mΩ typ., 68 A MDmesh™ DM6 Power MOSFETs in TO-247 and TO-247 long leads packages 3 2 1 TO-247.
