STWA72N60DM6AG

N-channel Power MOSFET

STWA72N60DM6AG Features

* Order code STWA72N60DM6AG VDS 600 V RDS(on) max. 42 mΩ ID 56 A

* AEC-Q101 qualified

* Fast-recovery body diode

* Lower RDS(on) per area vs previous generation

* Low gate charge, input capacitance and resistance

* 100% avalanche tested

* Extremely h

STWA72N60DM6AG General Description

This high-voltage N-channel Power MOSFET is part of the MDmesh DM6 fastrecovery diode series. Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Qrr), recovery time (trr) and excellent improvement in RDS(on) per area with one of the most effective switching beh.

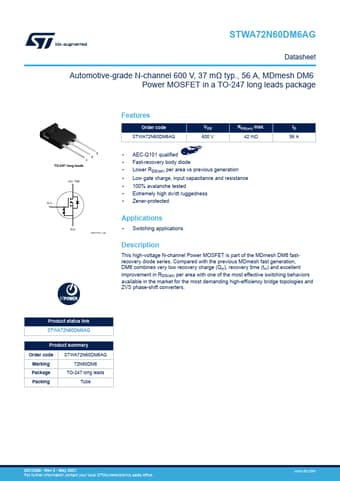

STWA72N60DM6AG Datasheet (275.25 KB)

Preview of STWA72N60DM6AG PDF

Datasheet Details

Part number:

STWA72N60DM6AG

Manufacturer:

STMicroelectronics ↗

File Size:

275.25 KB

Description:

N-channel power mosfet.
STWA72N60DM6AG Datasheet Automotive-grade N-channel 600 V, 37 mΩ typ., 56 A, MDmesh DM6 Power MOSFET in a TO‑247 long leads package TO-247 long leads.
