TS7514CP, TS7514, PROGRAMMABLE V.23 MODEM

TS7514 PROGRAMMABLE V.23 MODEM WITH DTMF .PROGRAMMABLE MODES : - Modem 75bps transmit, 1200bps receive - Modem 1200bps transmit, 75bps receive - DT.
The TS7514 is an FSK modem which can be programmed for asynchronous half-duplex voiceband communications on a 2-wireline or full duplex ORDER CODES.

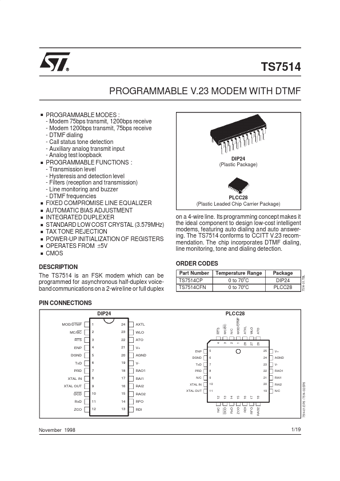

datasheet Preview Page 1 from Datasheet4u.com

TS7514_STMicroelectronics.pdf

TS7514CP Datasheet Preview — This datasheet PDF includes multiple part numbers: TS7514CP, TS7514. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TS7514CP, TS7514

Manufacturer:

STMicroelectronics ↗

File Size:

170.12 KB

Description:

PROGRAMMABLE V.23 MODEM

Note:

This datasheet PDF includes multiple part numbers: TS7514CP, TS7514.
Please refer to the document for exact specifications by model.

Features

* DTMF dialing, call status tone detection and line monitoring in both dialing and automaticanswer modes. A signalling frequency is available at the line monitoring output (buzzer). Ring detection is possible by using the signal detection function and bypassing the receive filter. The receive signal a
