TS7541L Datasheet - Tagore

50W CW GaN Broadband RF Switch

TS7541L Features

* Low insertion loss: 0.40dB @ 800MHz

* High isolation: 36dB @ 800MHz

* High linear power handling capability

* No external DC blocking capacitors on RF lines

* Versatile 2.6-5.5V power supply 2.0 Applications

* Private mobile radio handsets

* Public safety handsets

TS7541L General Description

The TS7541L is a symmetrical reflective Single Pole Four Throws (SP4T) switch designed for broadband, high power switching applications. Its broadband behavior from 30MHz to 1.2GHz frequencies makes the TS7541L an excellent switch for all the applications requiring low insertion loss, high isolation.

TS7541L Datasheet (429.81 KB)

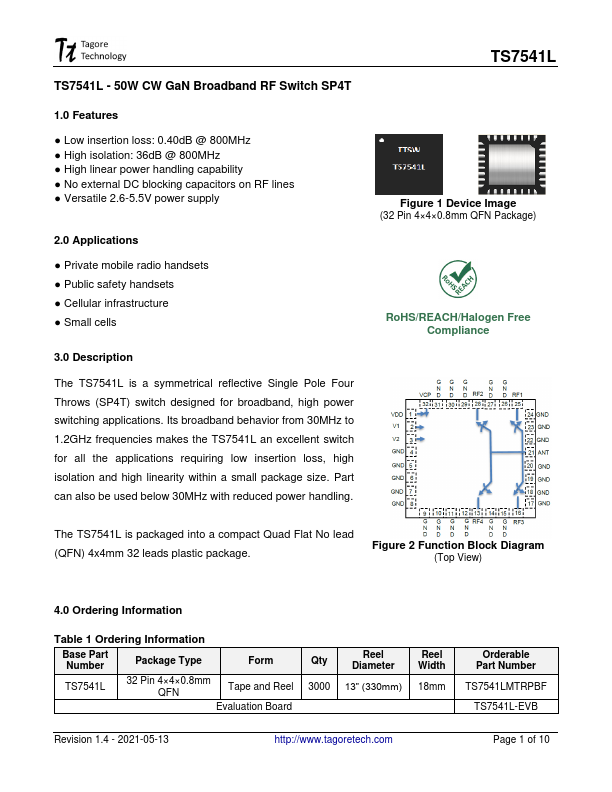

TS7541L Datasheet Preview — Preview of TS7541L PDF

Datasheet Details

Part number:

TS7541L

Manufacturer:

Tagore

File Size:

429.81 KB

Description:

50w cw gan broadband rf switch.
