TSC2022, TSC2020 - bidirectional current sense amplifier

STMicroelectronics

📥 Download Datasheet

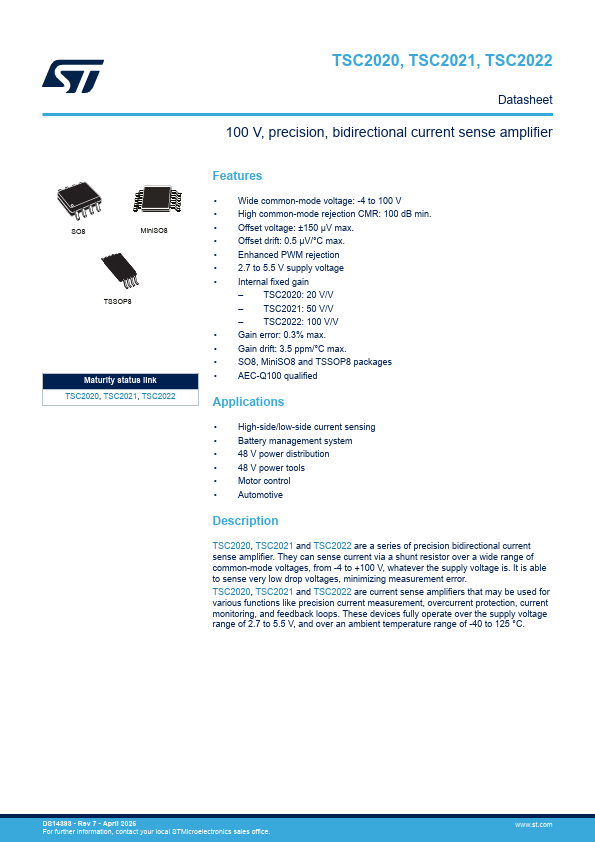

TSC2022 Datasheet Preview — This datasheet PDF includes multiple part numbers: TSC2022, TSC2020. Please refer to the document for exact specifications by model.

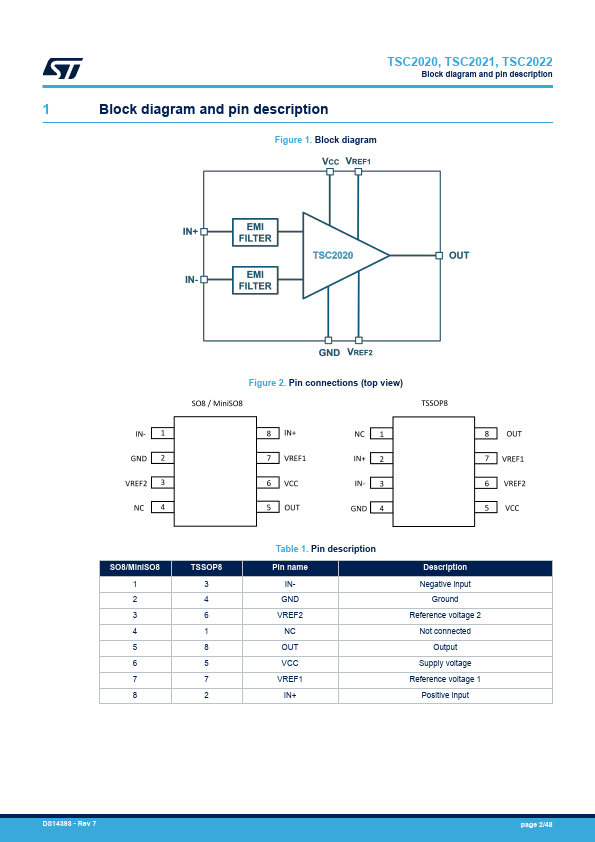

datasheet Preview Page 2

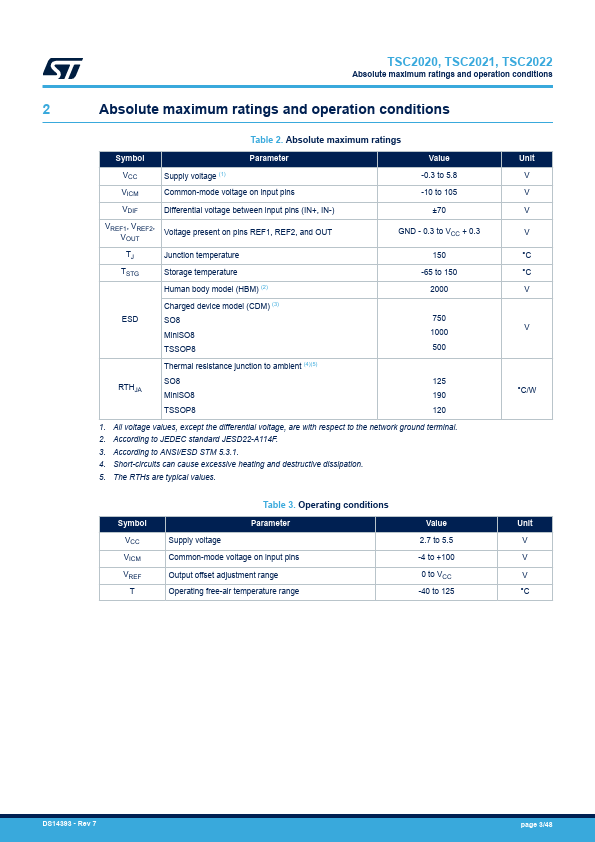

datasheet Preview Page 3

Datasheet Details

Part number	TSC2022, TSC2020
Manufacturer	STMicroelectronics ↗
File Size	4.80 MB
Description	bidirectional current sense amplifier
Datasheet	TSC2020-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: TSC2022, TSC2020. Please refer to the document for exact specifications by model.

TSC2022 Product details

Description

TSC2020, TSC2021 and TSC2022 are a series of precision bidirectional current sense amplifier.

Features

Wide common-mode voltage: -4 to 100 V.
High common-mode rejection CMR: 100 dB min.
Offset voltage: ±150 µV max.
Offset drift: 0.5 µV/°C max.
Enhanced PWM rejection.
2.7 to 5.5 V supply voltage.
Internal fixed gain.
TSC2020: 20 V/V.
TSC2021: 50 V/V.
TSC2022: 100 V/V.
Gain error: 0.3% max.
Gain drift: 3.5 ppm/°C max.
SO8, MiniSO8 and TSSOP8 packages.
AEC-Q100 qualifie.
