TSC213, TSC210 - zero-drift current sense amplifier

STMicroelectronics

TSC213 Datasheet Preview — This datasheet PDF includes multiple part numbers: TSC213, TSC210. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TSC213, TSC210
Manufacturer	STMicroelectronics ↗
File Size	1.70 MB
Description	zero-drift current sense amplifier
Datasheet	TSC210-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: TSC213, TSC210. Please refer to the document for exact specifications by model.

TSC213 Product details

Description

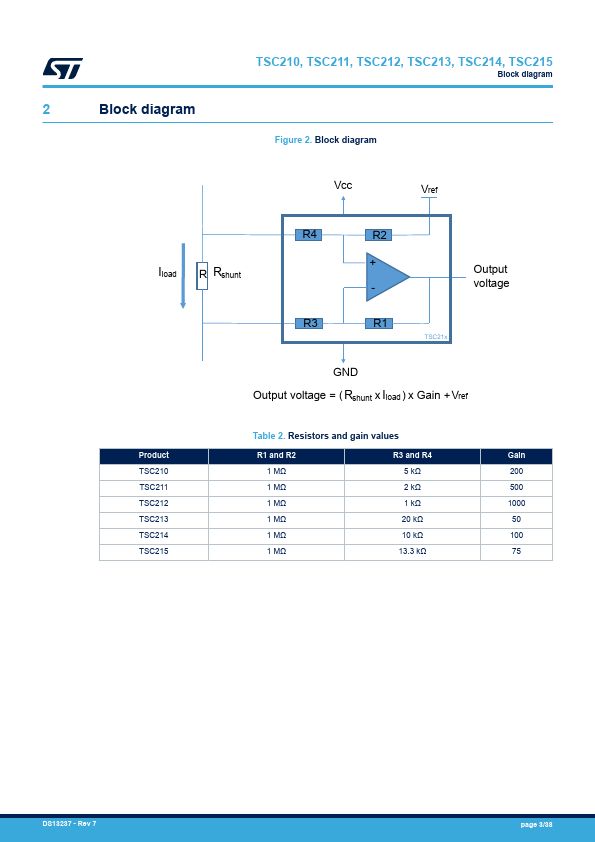

The TSC210, TSC211, TSC212, TSC213, TSC214 and TSC215 are a series of zerodrift current sense amplifiers that can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is.

Features

Wide common mode voltage: -0.3 to 26 V.
Offset voltage: ±35 µV max. (TSC210).
2.7 to 26 V supply voltage.
Different gain available.
TSC210 (200 V/V).
TSC211 (500 V/V).
TSC212 (1000 V/V).
TSC213 (50 V/V).
TSC214 (100 V/V).
TSC215 (75 V/V).
Gain error: ±1% max.
Offset drift: 0.1 µV/°C max.
Gain drift: 20 ppm/°C max.
Quiescent current: 100 µA.

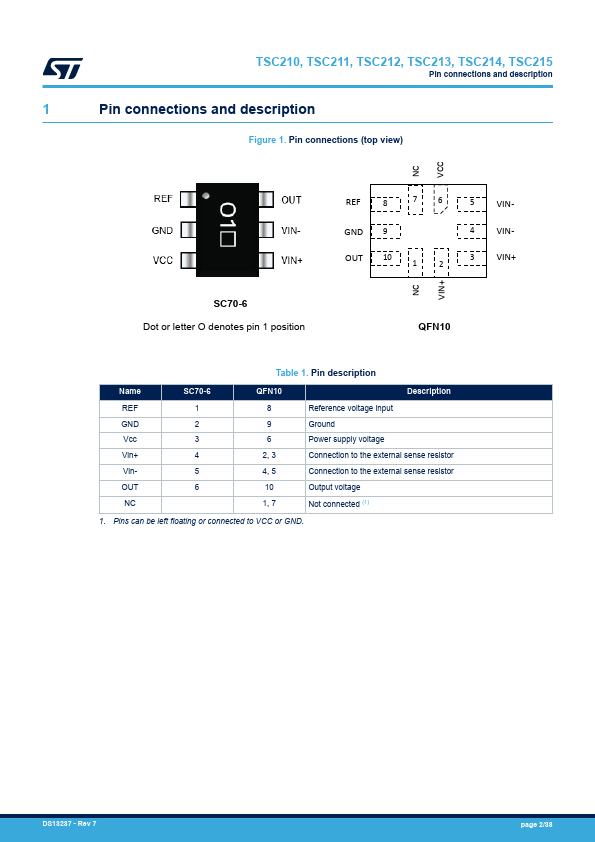

QFN10 (1.
