TSD57045-01 - RF POWER TRANSISTORS The LdmoSTFAMILY

STMicroelectronics

TSD57045-01 Description

® SD57045-01 RF POWER TRANSISTORS The LdmoST FAMILY ADVANCE DATA N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFETs ν ν ν ν EXCELLENT THERMAL STABILITY COM.
The SD57045-01 is a common source N-Channel Enhancement-Mode Lateral Field-Effect RF power transistor designed for broadband commercial and industrial.

TSD57045-01 Applications

* at frequencies up to 1.0 GHz. The SD57045-01 is designed for high gain and broadband performance operating in common source mode at 28V. It is ideal for base stations applications requiring high linearity. PIN CONNECTION 1. Drain 2. Gate ABSOLUTE MAXIMUM RATINGS (Tcase = 25 oC) Symbol V (BR)DSS V

📥 Download Datasheet

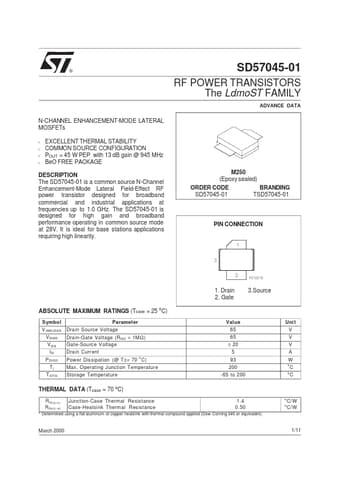

TSD57045-01 Datasheet Preview — Preview of TSD57045-01 PDF

Datasheet Details

Part number: TSD57045-01
Manufacturer: STMicroelectronics ↗
File Size: 233.46 KB
Datasheet: TSD57045-01_STMicroelectronics.pdf
Description: RF POWER TRANSISTORS The LdmoSTFAMILY
