TSD57060-01 Description

® SD57060-01 RF POWER TRANSISTORS The LdmoST FAMILY PRELIMINARY DATA N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFETs s s s s EXCELLENT THERMAL STABILITY.
The SD57060-01 is a common source N-Channel enhancement-mode lateral Field-Effect RF power transistor designed for broadband commercial and industrial.

TSD57060-01 Applications

* at frequencies up to 1.0 GHz. The SD57060-01 is designed for high gain and broadband performance operating in common source mode at 28V. It is ideal for base station applications requiring high linearity. PIN CONNECTION 1. Drain 2. Gate ABSOLUTE MAXIMUM RATINGS (Tcase = 25 oC) Symbol V (BR)DSS V G

📥 Download Datasheet

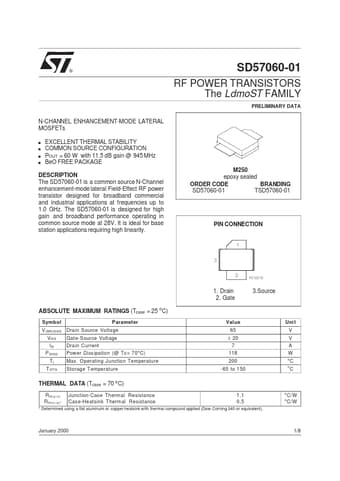

TSD57060-01 Datasheet Preview — Preview of TSD57060-01 PDF

Datasheet Details

Part number: TSD57060-01
Manufacturer: STMicroelectronics ↗
File Size: 71.90 KB
Datasheet: TSD57060-01_STMicroelectronics.pdf
Description: RF POWER TRANSISTORS The LdmoSTFAMILY
