TSD5N65M - N-Channel MOSFET

This Power MOSFET is produced using Maple semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices.

TSD5N65M Features

* - 3.0A, 650V, RDS(on) = 3.0Ω@VGS = 10 V - Low gate charge ( typical 16nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D D GS GDS G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Pa

TSD5N65M-Truesemi.pdf

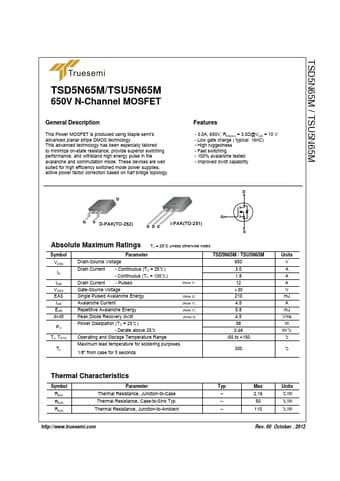

TSD5N65M Datasheet Preview — Preview of TSD5N65M PDF

Datasheet Details

Part number:

TSD5N65M

Manufacturer:

Truesemi

File Size:

303.53 KB

Description:

N-channel mosfet.
